Grout Pumps SpecificationsCG-3X8
Double Acting Plunger Grout Pumps · Grout Pumps
CG-3X8

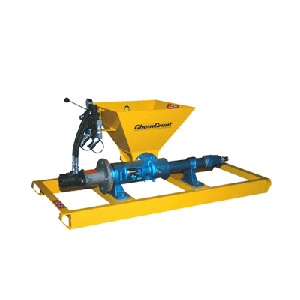

The ChemGrout High Pressure Pump series are skid mounted grout pumps. These low maintenance pumps are designed to work with your grouting batch plant or mixing system. The grout pump is a double acting, positive displacement, plunger style pump that is available in three different sizes, 3.5x8, 3x8 and 2x8, offering discharge pressures of 800 psi, 1,000 psi and 2,000 psi respectively.
Units
Specifications
| Specification | US | Metric |
|---|---|---|
| Pump Size | 2" x 8" | 3" x 8" |
| Maximum Output | 14 gpm (58 lpm) | 20 gpm (77 lpm) |
| Maximum Pressure | 2,000 psi (138 bar) | 1,000 psi (69 bar) |
Requirements
| Specification | US | Metric |
|---|---|---|
| Model Number | Description | Dimensions |
| CG3X8/H | Skid Mounted Hydraulic Grout Plant | 75" L X 28" W X 26" H |
| CG3X8/A | Skid Mounted Air Powered Grout Plant | 77" L X 36" W X 38" H |
| CG3X8/EH | Skid Mounted Electric/Hydraulic Grout Plant | 91" L X 36" W X 38" H |
| CGPU24/DHES | Power Pack Diesel/Hydraulic;Diesel Engine With Eletric Start* | 74" L X 34" W X 37" H |
